Texture Packing

A simple rectangle packing implementation intended to be used for creating texture atlases.

Notes:

• No claim to be particularly fast or to pack particularly efficiently, the priority was simplicity
• Assumes that swapping rectangle dimensions is allowed (e.g. a 90 degree rotation or transposition)
• Press r to generate and pack a new set of rectangles

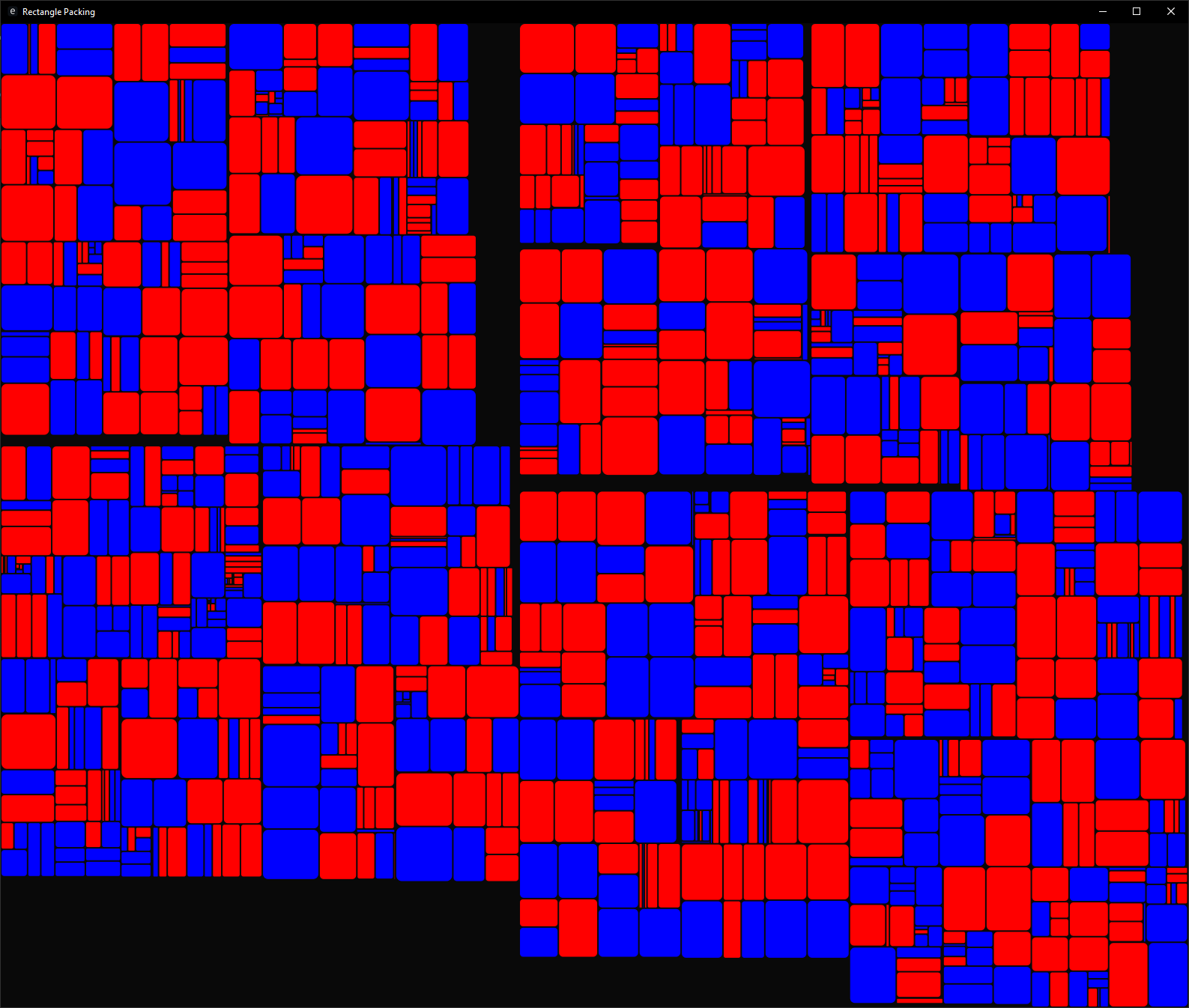

• Blue rectangles are in their original orientation and red are transposed

Explanation

For another project I needed to pack a texture atlas and wanted a simple algorithm that did better than a naive implementation. This is the first algorithm that I could come up with, very roughly inspired by the basic algorithm to build Huffman code tables. Therefore, I'm not sure if this algorithm already has a name. Here is a very rough outline of the algorithm

1. First, the list of rectangles is transposed so that the width of each rectangle is the larger of the two dimensions.
2. Next, the list of rectangles is sorted by width (the larger of the two dimensions) followed by height in the case of equal widths.
3. While there are more than 2 rectangles left in the list, do the following:
   1. The two smallest rectangles are removed from the back of the list and merged into a new rectangle.
   2. They are merged into a new rectangle where the width is the largest of the widths of the two merged rectangles and the height is the sum of the height of the two merged rectangles.
   3. References to each of the two merged rectangles are attached to the new rectangle.
   4. The new rectangle is transposed if the new height is larger than the new width.
   5. The new rectangle is inserted back into the list such that it is still sorted.
4. Now, there is one rectangle and a binary tree structure describing how the rectangles are packed
5. The binary tree structure is traversed depth first to compute the final positions and orientations, which are returned in a list.
